Practical Hoardings - Returns

Practical Hoarding Returns

Previous Practical Hoardings - Skin Fixing Specification Next Practical Hoardings - Splays

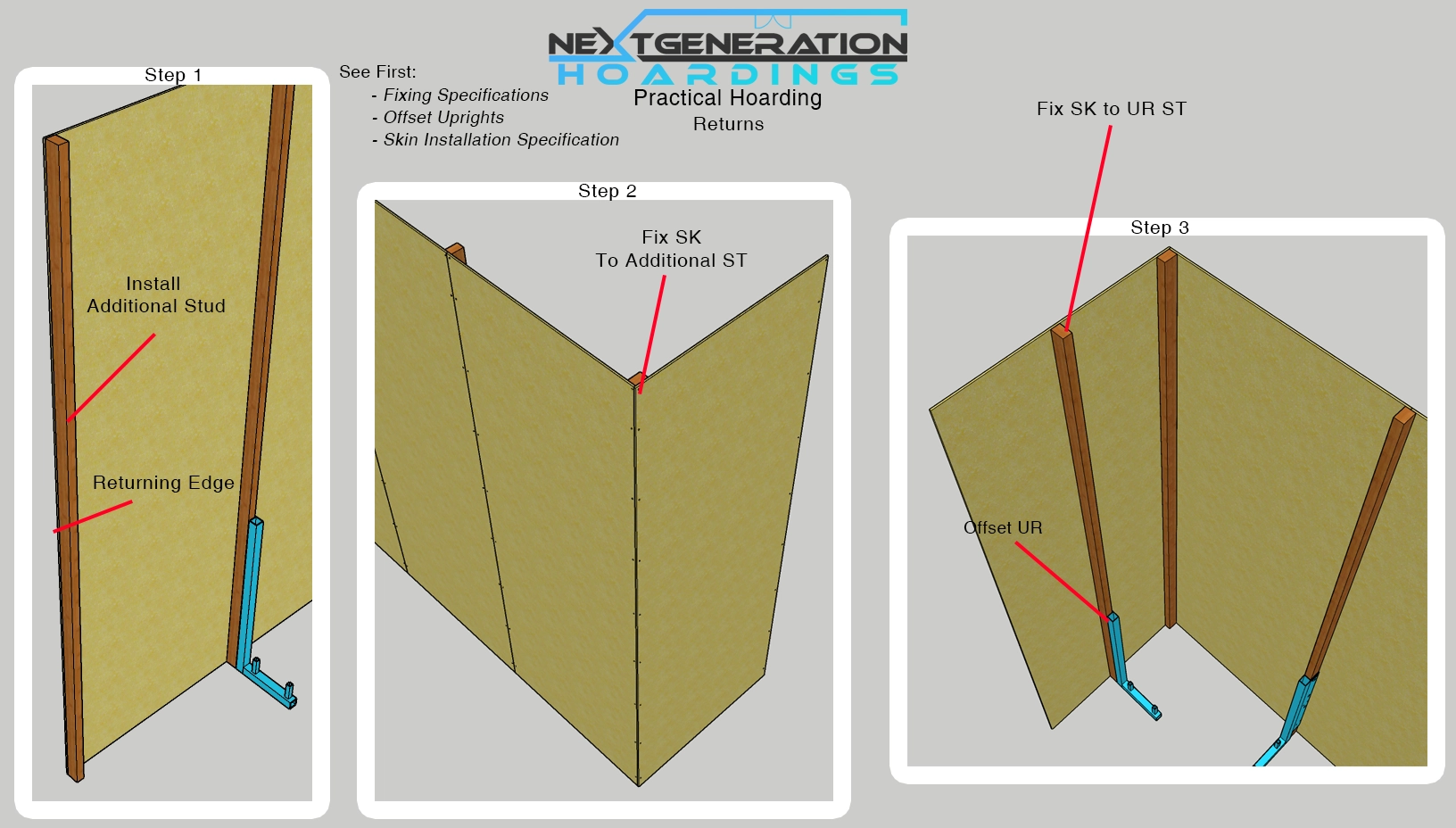

Practical Hoarding Returns

Return Panels (Returns) are typically at each end of a hoarding returning the hoarding back into the shop-front or construction site.

To install Returns on Practical Hoardings:

  1. install an Additional Stud (see: Skin Fixing Specification) on the edge of the Panel Skin (SK) you wish to return.
  2. Fix Panel Skin (SK) to Additional Stud (see: Skin Fixing Specification)
  3. Install Offset Upright (see Offset Uprights).
