Stud Fixing Holes
Each NXGN upright stud receiver has 6× 8mm holes for fixing to the timber stud. These holes are positioned in pairs (front and rear) at three heights along the stud receiver.
| Detail | Specification |
|---|---|
| Number of Fixing Holes | 6× 8mm diameter |
| Arrangement | 3 pairs (Top, Middle, Bottom) |
| Front Offset | 10mm from front edge of stud receiver |
| Rear Offset | 48mm from front edge of stud receiver |
Tamper-Proof Holes
Each upright has 3× 20mm tamper-proof holes for security fixings that prevent unauthorised removal of the upright from the hoarding.
| Detail | Specification |
|---|---|
| Number of Tamper-Proof Holes | 3× 20mm diameter |
| Offset from Front Edge | 22.5mm |
| Positions | Top, Middle, Bottom |
CNC Logo Placement
Each upright features the NXGN logo, CNC-cut into the stud receiver for branding and identification:
- Horizontal position: 12.5mm from each horizontal edge
- Vertical position: 5mm from the top of the stud receiver

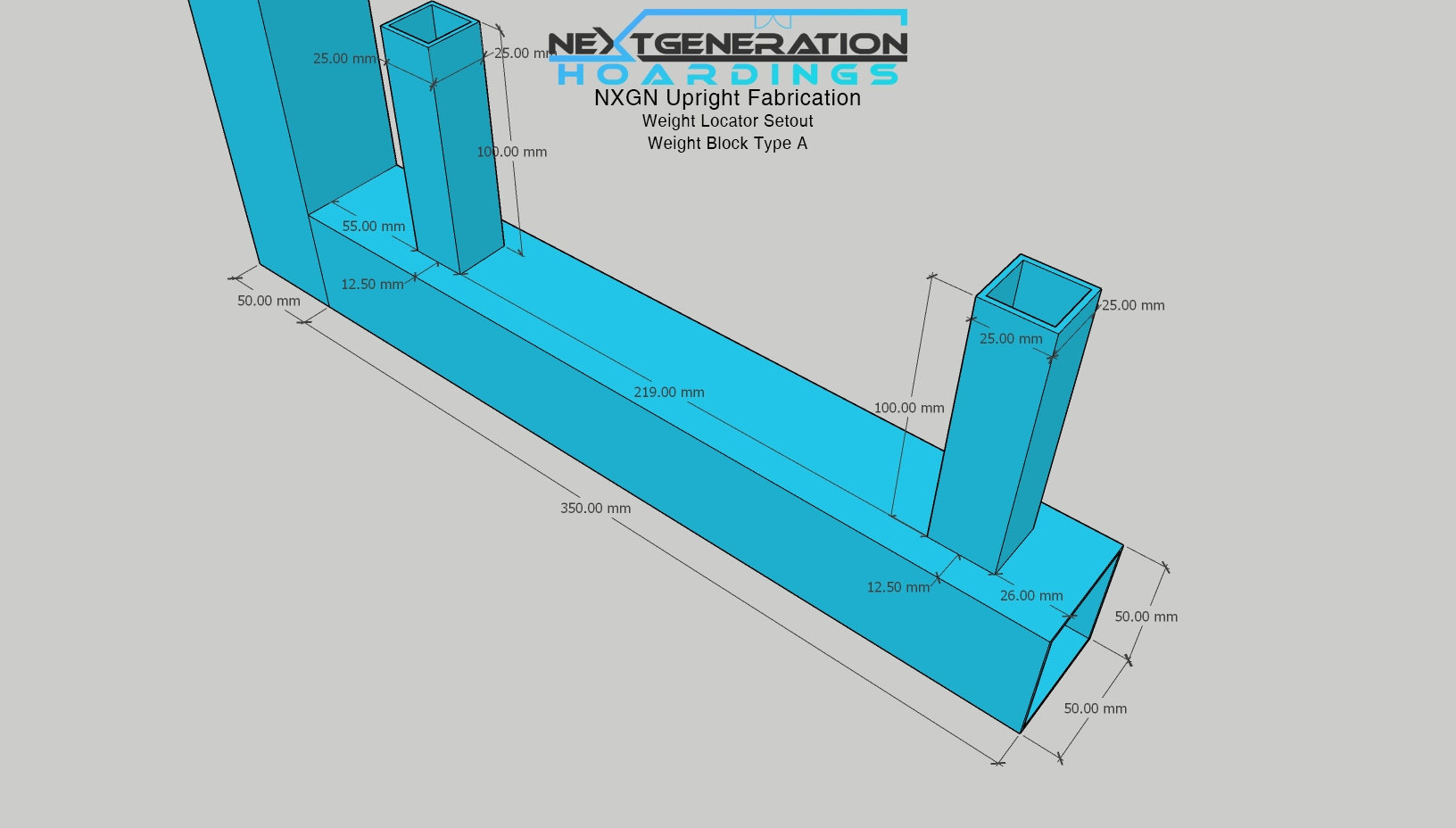

Weight Locator Dimensions
The weight locators on the upright foot are 25×25×1.6mm RHS sections, tack-welded to the foot. They are positioned to centre and contain the blow-moulded weight blocks on the foot plate.
